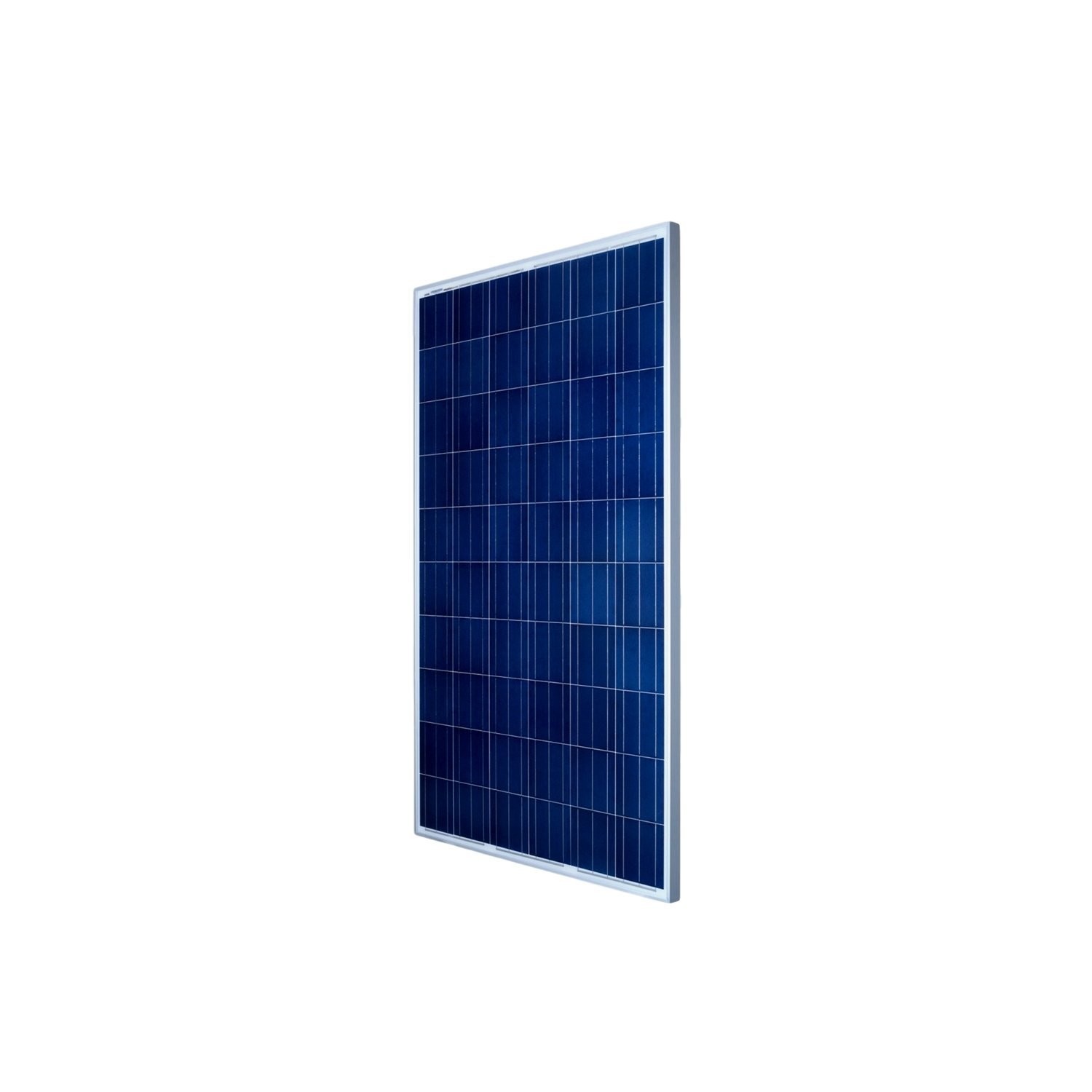

Renewsys 100 Watt Solar Panel (R9.86/Watt excl Vat)

SKU P-REN-100W Poly Crystalline A Grade
R986.00
In stock
1
Product Details

Renewsys 10 Watt Solar Panel (A-grade)

The high performance Multi Crystalline Silicon Modules are designed for grid-tie as well as off-grid applications.

TECHNICAL DETAILS:

Performance under standard test conditions (1000W/m2 AM 1.5, 25oC)

  • Cell Technology, Multi-Crystalline (Poly)
  • Rated power (Pmax), Wp – 100
  • Max power voltage (Vmp), V – 17.92
  • Max power current (Imp), A – 5.59
  • Open circuit voltage (Voc), V – 21.92
  • Short circuit current (Isc), A – 5.95

OPERATING CONDITIONS

  • Ambient temperature, °C -40 to + 85
  • Maximum system voltage, Vdc 1000
  • Hail impact velocity, m/sec 23
  • Maximum surface load capacity, Pascals 5400

MANUFACTURING WARRANTY (5 Years)

Product Delivery Warranty:“DESERV- C60” Series: Period 10 years.
