Renewsys 330 Watt Solar Panel (R5.79/Watt excl Vat)

SKU P-REN-330W Poly Crystalline A Grade
R1 910.70
In stock
1
Product Details

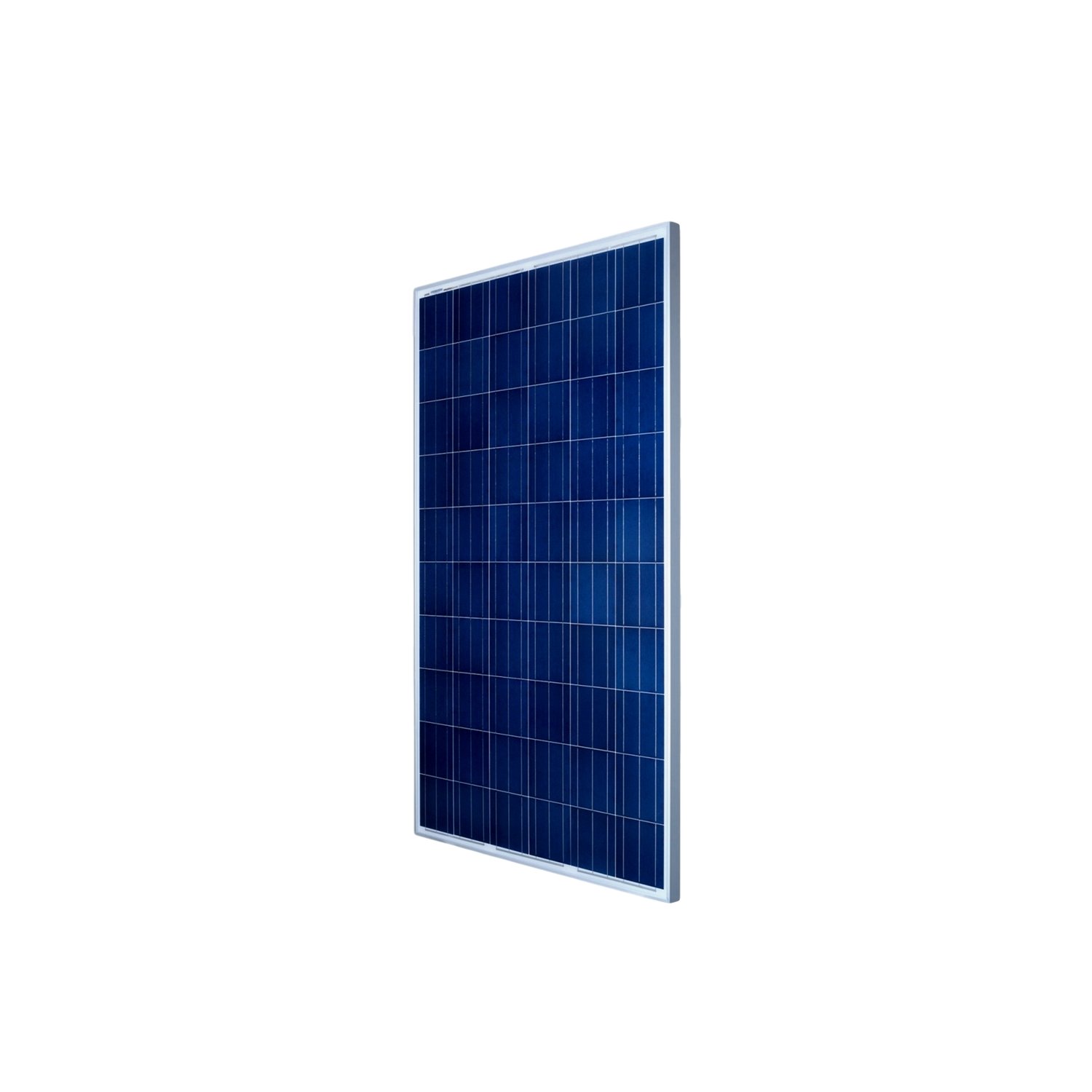

Renewsys 330Watt Solar Panel (A-Grade)

The high performance Multi (Polly) Crystalline Silicon Modules are designed for on-grid as well as off-grid applications.

TECHNICAL DETAILS:

Performance under standard test conditions (1000W/m2 AM 1.5, 25oC)

  • Cell Technology, Multi-Crystalline (Poly)
  • Rated power (Pmax), Wp – 330
  • Max power voltage (Vmp), V – 37.62
  • Max power current (Imp), A – 8.78
  • Open circuit voltage (Voc), V – 46.24
  • Short circuit current (Isc), A – 9.30

OPERATING CONDITIONS

  • Ambient temperature, °C -40 to + 85
  • Maximum system voltage, Vdc 1000
  • Hail impact velocity, m/sec 23
  • Maximum surface load capacity, Pascals 5400

MANUFACTURING WARRANTY (10 Years)

Product Delivery Warranty:
“DESERV- 3M6” Series: Period 25 years (10 years + 15 years)
The Module(s) sold could generate a power output of:
  1. +/- 90% of the rated power for a period of 10 years;
  2. +/- 80% of the rated power for the remaining Term of Warranty
