Zilmet Magic Box Pressure Booster Pump with VSD
Zilmet Magic Box Maxi Pressure Booster Pump with Built-in VSD – Low Energy Consumption
Low-maintenance and easy operation – Ideal for applications with solar systems
The Zilmet Magic Box Maxi series permanent magnet brushless motor speed variable inverter booster pumps; adopt a permanent magnet brushless motor, advanced electronic control technology, high precision, and reliable pressure sensor, advanced stainless steel multistage pump design with centrifugal type impeller, the real realization of intelligent frequency conversion and constant pressure water supply.
The Zilmet Magic Box Maxi supplies between 1 and a maximum of 4.5 bar pressure, with a flow range of 1000 to 4000 liters per hour. It also has a built-in, automatic start/stop function for when there is no flow.
The ZIlmet Magic Box Maxi is a Variable Speed Drive (VSD) Booster Pump, which basically means the pump will change the amount of power used, depending on the water demand. For example, the pump will use less power when only one tap is open, than when there are two or more taps open.
Features:
- Silent
- Multi Use
- Energy Efficient
Applications:
- Domestic Water Supply
- Industrial Water Supply & Circulation
- Cooling System
- Air conditioning System
- Commercial Water Supply and Pressure Boosting
Specifications:
- 650w / .65kw
- 220VAC
- 50/60Hz
- 5000RPM
- Hn: 37m
- Qn: 2 m3/h
- Pmax: 8bar
- Maximum Water Temp: 90°C
- IP54 Class 155 (F)
Intelligent and efficient constant pressure water supply. High efficiency and energy-saving: Grade IE4 motor, the average energy saving is more than 30% compared with the same power asynchronous motor. Environment-friendly: electronic automatic control technology.

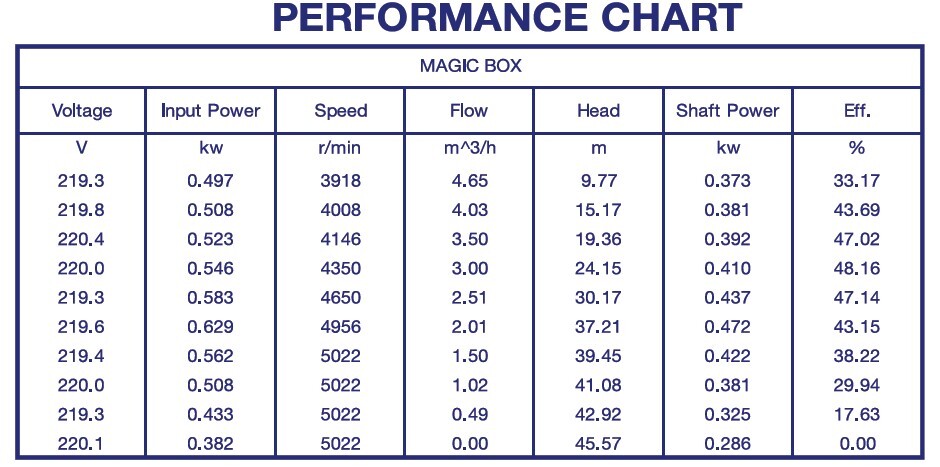

FLOW CHARTS
WARRANTY:
Zilmet Magic Box Maxi pump and controller is available with a 1 year manufacturing warranty. (Terms & Conditions Apply)
